We take quality seriously

Significant investments have been made to maintain quality and consistency throughout the production process.

Highly skilled personnel staff DTI's temperature-controlled Quality Assurance Department.

This room houses two coordinate measuring machines (CMMs), including a Brown & Sharpe Global Image 575 DCC with a measuring range of X-20", Y-27", Z-20" and a resolution of 0.000003".

Our CMM's are equipped to handle the most demanding application. Parts can be inspected on our CMM's using your CAD models in popular file formats, such as IGES, VDAFS, DXF, STEP and formats from CAD manufacturers such as CATIA V4/V5 and ProE, for example.

DTI uses a full range of precision measuring equipment calibrated against traceable national standards as well as statistical techniques for measurement system analysis.

Analysis and Documentation

A wide variety of statistical analysis tools and reporting capabilities are available that can be set up to continually monitor the manufacturing process while producing your parts. Our engineering team will work with you to ensure that you are provided with all the needed data analysis for your critical dimensions.

DTI is ready to meet all of your documentation and analysis needs, including but not limited to:

  • First Article Inspection      (FAI)
  • Initial Sample      Inspection Report      (ISIR)
  • Process Flow
  • Process Failure      Modes and Effects      Analysis (PFMEA)
  • Control Plans
  • Work Instructions
  • Production Part      Approval Process      (PPAP)
  • Part Submission      Warranty (PSW)
  • Measurement System      Analysis (MSA)
  • Statistical Process      Control (SPC)
  • Material Certifications      for raw material,      plating and other      services.














  •
    CMM Technology
    Brown & Sharpe Global Image
    Brown & Sharpe Validator
    Zeiss Vista
    Brown & Sharpe MicroVal

    Back To Top

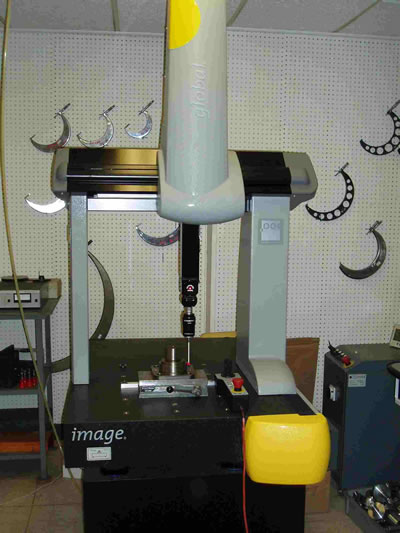

    Brown & Sharpe Global Image

    Brown & Sharpe Global Image 575 DCC

    • Measuring Range: X-20", Y-27", Z-20"
    • Renishaw PH10M Motorized Probe Head
    • Renishaw SP600M Scanning Probe Head
    • Renishaw TP200 Touch Trigger Probe
    • SCR600 Stylus Changer Rack
    • PC-DMIS CAD ++ Software
    • DataPage / RT Statistical Software

    Back To Top
    Brown & Sharpe Validator

    Brown & Sharpe Validator Series 7300 DCC

    • Measuring Range: X-48", Y-72", Z-32"
    • Renishaw PH9 Mk2 Motorized Probe Head
    • Renishaw TP20 Touch Trigger Probe
    • PC-DMIS CAD Software

    Back To Top

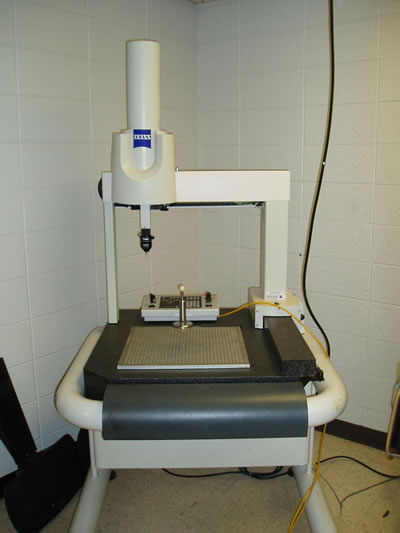

    Zeiss Vista

    Zeiss Vista DCC

    • Measuring Range: X-16", Y-20", Z-14"
    • Renishaw MIP Manual Indexable Touch Trigger Probe
    • Calypso Software

    Back To Top

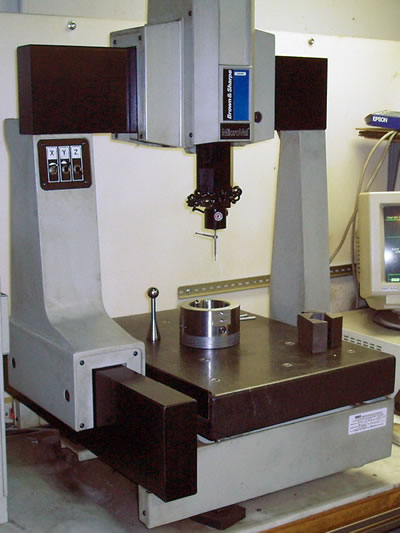

    Brown & Sharpe MicroVal

    Brown & Sharpe MicroVal 343 CMM

    • Measuring Range: X-14", Y-16", Z-12"
    • Renishaw TP1s Touch Trigger Probe
    • MicroMeasure III Software
